Oximetru spirodoc + software winspiro pro
One touch laboratory for respiratory analysis suitable for professional and personal use.

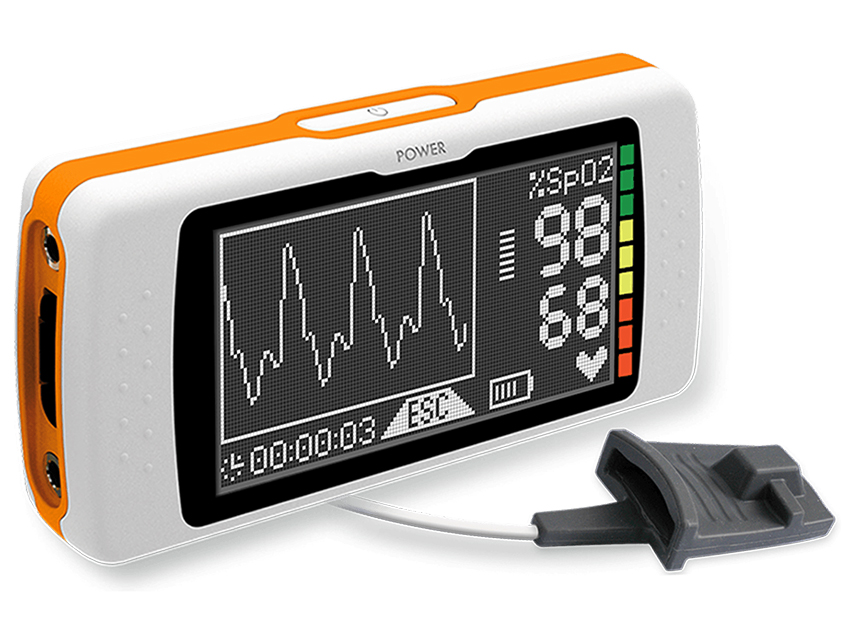

Intelligent pulse oximeter with on-screen results
Simple, clear SpO2 and Pulse Rate measurements with plethysmographic curve. During the single six-minute walk test (6 MWT), Spirodoc® estimates the level of oxygen therapy required by the patient. Spirodoc® carries out sleep desaturation studies and memorizes events as well as body position.
3D Accelerometer with motion analysis
Spirodoc® is the first 3D Oximeter® incorporating a triaxial motion sensor to correlate the saturation level (%SpO2) with physical activity (walk counter, movement analysis and VMU).
Home-care symptoms diary
Fast on-screen symptoms entry. Touch screen with settable questions and automatic answer recording for homecare patient use (eDiary).

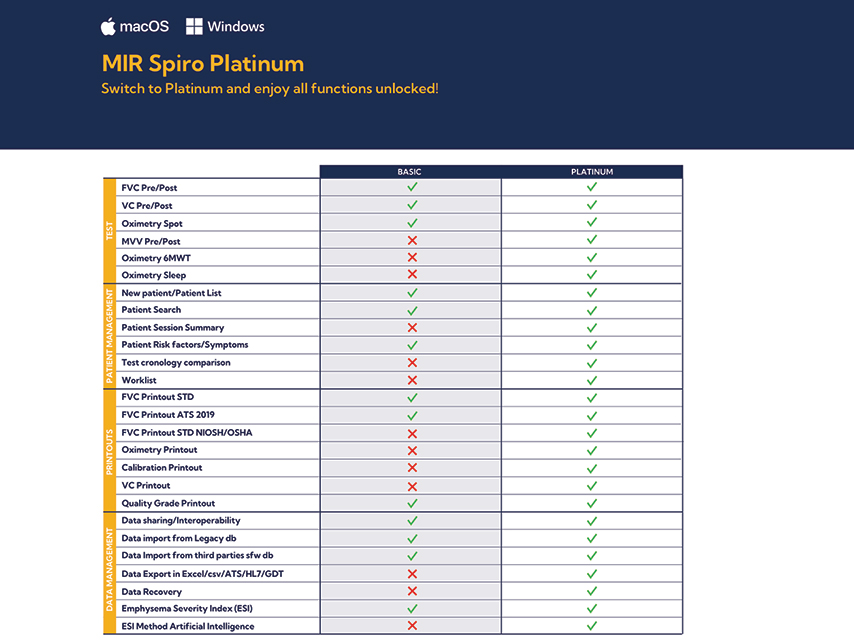

High performance PC software for spirometry and oximetry
All tests memorized in Spirodoc® are automatically downloaded into WinspiroPRO and a patient data card is created with a preview of the spirometry curve. WinspiroPRO can easily be connected to a database, EPR, hospital or occupational health system. This software also gives trend graphs of any parameter. All stored tests and curves of every patient can be reviewed on a single page and the results, including oximetry tests, can be compared.
Supplied with reusable turbine.
Multilanguage software: GB, FR, IT, ES, DE, PT, PL, NL SE, CZ, LV, TR, RU, CN, JP.
Stoc: În depozit Gima Italia
6.344,00 lei
Central unit
● Display: LCD backlit touch screen display 128×64 pixels
● Power supply: Lithium ion 3.7 V, 1100 mA rechargeable battery with 50 hours measurement back up
● Accelerometer: Triaxial ?2 g, 400 Hz sampling
● Dimension and weight: central unit 101x48x16 mm, 99 g removable turbine head: 46x47x24 mm, 17 g
Oximetry
● SpO2 range: 0 -100%, ?2% (50-100% SpO2)
● Pulse rate range: 20-254 BPM, ?2 BPM or 2%
Pulseoximeter measured parameters
● SpO2 [Baseline, Min, Max, Mean], Pulse rate [Baseline, Min, Max, Mean], T90% [SpO2<90%], T89%[SpO2<89%], T88% [SpO2<88%], T5% [?SpO2>5%], ?index [12s], SpO2 events, Pulse rate events [Bradycardia, Tachycardia], Step counter, Movement [VMU], Recording time, Analysis time
Sleep analysis
● Body position, SpO2 events, Desaturation index (ODI), Desaturation [Mean Value, Mean duration, Longest duration, Nadir Peak], ?SpO2 [Min Drop, Max Drop], Total Pulse Variations, Pulse Rate Index, NOD89% [SpO2<89%; >5min], NOD4% [SpO2 Basale-4%; >5min], NOD90% [SpO2<90%; Nadir<86%; >5min]
