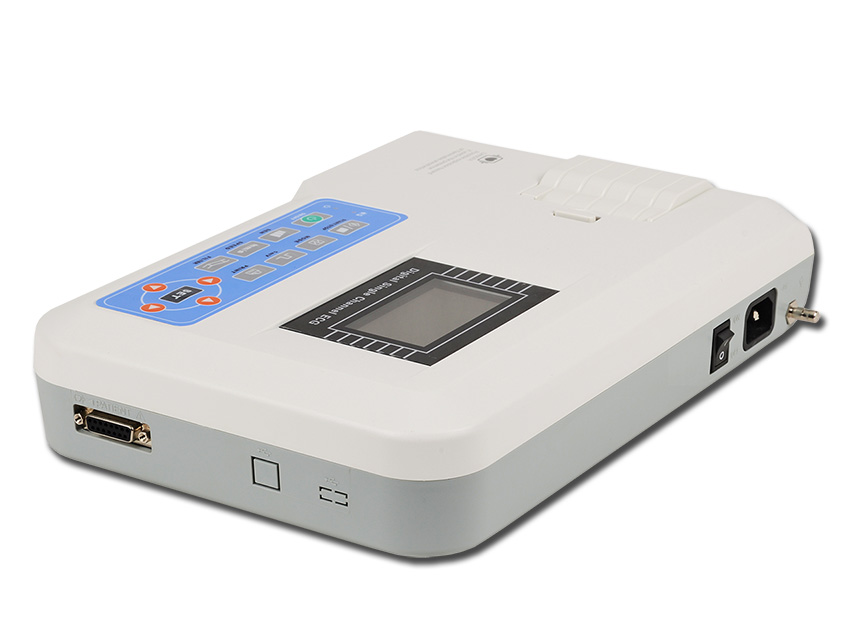

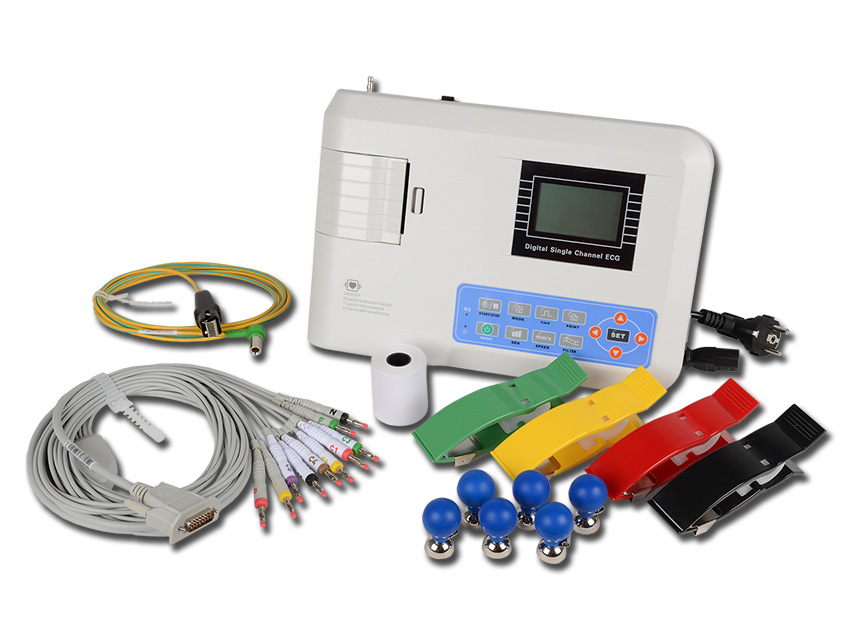

100g ecg – 1 canal cu monitor

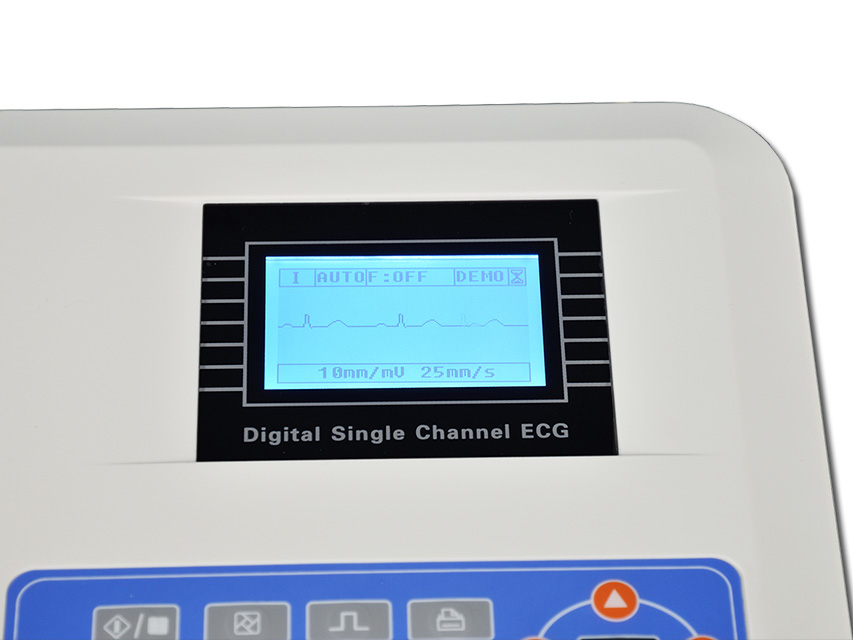

– Large LCD display waveform and data
– High-resolution thermal printing array system
– Frequency response is as high as 150 Hz
– Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
– High resolution digital filter inhibits baseline drift without affecting ECG waveform
– Floating input circuit meets IEC safety standard
– Rechargeable battery supporting more than 50 patient examinations
– Internal software: GB, IT, FR, ES, DE, TR.
– Manual: GB, IT, ES.
Stoc: În depozit Gima Italia
2.288,00 lei
ECG instrument Input
● Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
● Lead Standard 12 leads
● Input way: Floating and defibrillation protection
● Patient leak current: <10?A
● Sampling rate: 800Hz
● A/D conversion: 12bit
● Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
● Time constant: >3.2s
● CMRR: >60dB, >100dB(Add filter)
● Enduring polarization voltage: ?500mV
● Noise level: <15?Vp-pDispose Wave Data
● EMG interference filter 35Hz (-3dB)
● AC filter 50Hz/60Hz (=20dB)Waveform output
● Recording way: Thermal printing system
● Recording paper: 50mm(W)?20m(L)
● Sensitivity: 5, 10, 20mm/mV
● Paper speed:
- Auto-record: auto leads changing
- Rhythm record: 25 mm/s, 50 mm/s
- Manual-record: 25 mm/s, 50 mm/sPower supply
● AC: 110-220V, 50/60 Hz
● DC: Lithium battery 7.4V, 2000 mAhFuse
● 2 pcs ?5?20mm AC time lag; T250mA/250V(Power Supply:220V)Form
● Size: 315 x 215 x 77 mm
● Net Weight: 1.5 kg
Valoare minimă comandă pentru produsele GIMA:
2.500 lei
Gima Italia este o companie italiană cu 99 de ani de experiență în domeniul medical, ce vinde peste 9500 de tipuri de produse în peste 145 de țări din întreaga lume.
Plata se face în LEI cu Ordin de Plată. Vă vom trimite un OP prin email după plasarea comenzii.
Prețurile nu includ TVA (21%).
