Ecg de buzunar 3 canale cu software

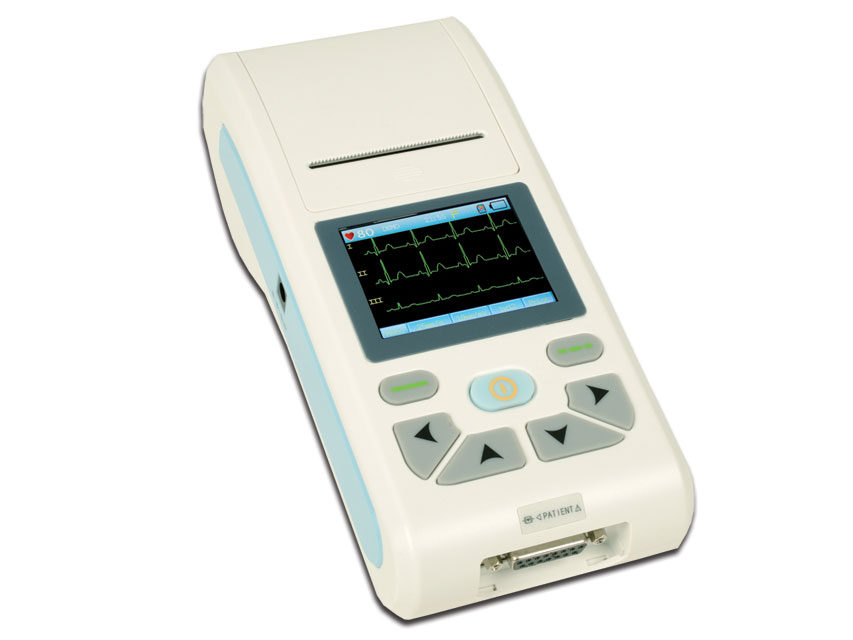

CARDIOPOCKET ECG 3 CHANNELS – with software
12-lead ECG printing ECG waveform with thermal printing system, measuring and diagnosing ECG waveform parameters automatically.
– full-automatic analysis function: auto-analysis and auto diagnosis for routine ECG parameters. It provides measurement results and auto diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+ S(V1)
– 2.83? colour LCD screen (resolution 320×240) that operates both with touch screen and keys
– high resolution thermal array output system 8 dots/mm (vertical)
– built-in rechargeable lithium detachable battery can continuously work for 4 hours, print up to 90 minutes and 150 ECG
– store up to 100 cases in a SD card
– high-accurate digital filter eliminates baseline drift and distorsion to ECG waveform
– ECG-Sync software to form a ECG workstation
Size: 207 x 96 x 62 mm
Net weight: 500 g
Stoc: În depozit Gima Italia
2.080,00 lei
– Power: AC: 100-240 V, 50/60 Hz – DC 12V rechargeable lithium battery 2,000 mAh
– Noise level: =15 ?Vp-p CMRR: >60 dB, > 100 dB (add filter)
– EMG filter: 25/35 Hz Time constant: =3.2 s
– Frequency response: 0.05-150 Hz (-3 dB – 0.4 dB)
– Patient leakage current: <10 ?A
- Recording paper: 50 mm x 20 m, high speed termal paper
- Paper speed: 6.25, 12.5, 25, 50 mm/s ?5%
- Safety standard: IEC class I, type CF defibrillation-proof applied part
- Input mode: floating and defibrillation protection
- Input circuit current: =0.1 ?A Input impedance: =50 M O
Valoare minimă comandă pentru produsele GIMA:
2.500 lei
Gima Italia este o companie italiană cu 99 de ani de experiență în domeniul medical, ce vinde peste 9500 de tipuri de produse în peste 145 de țări din întreaga lume.
Plata se face în LEI cu Ordin de Plată. Vă vom trimite un OP prin email după plasarea comenzii.
Prețurile nu includ TVA (21%).
