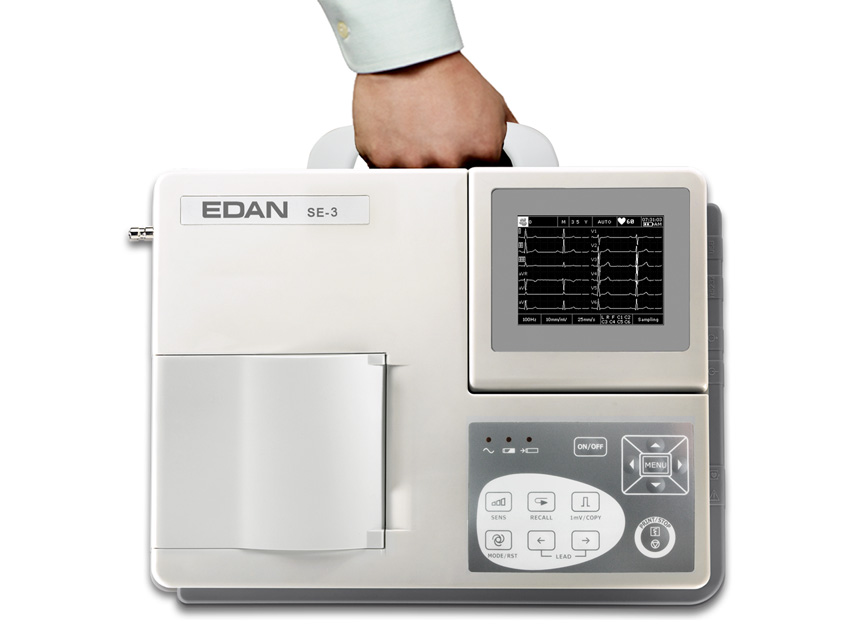

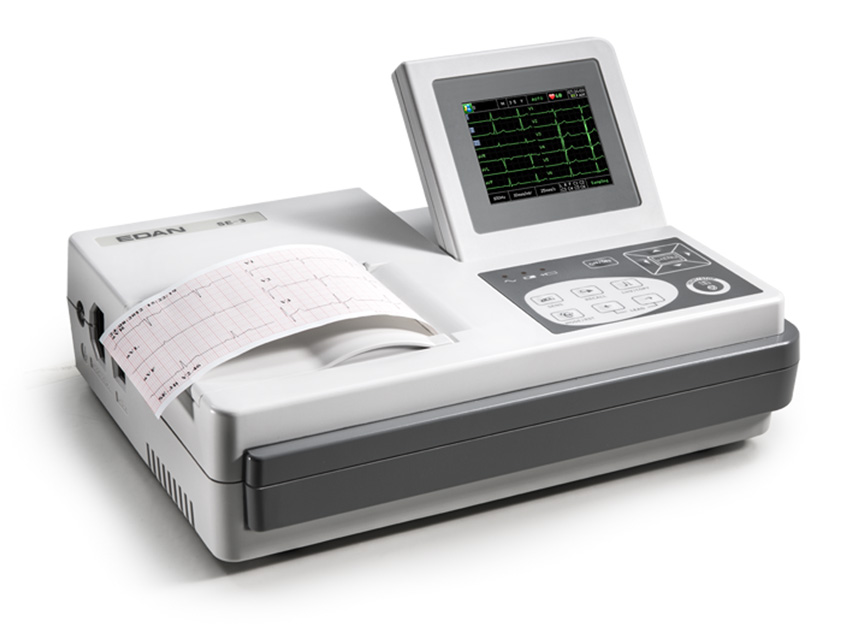

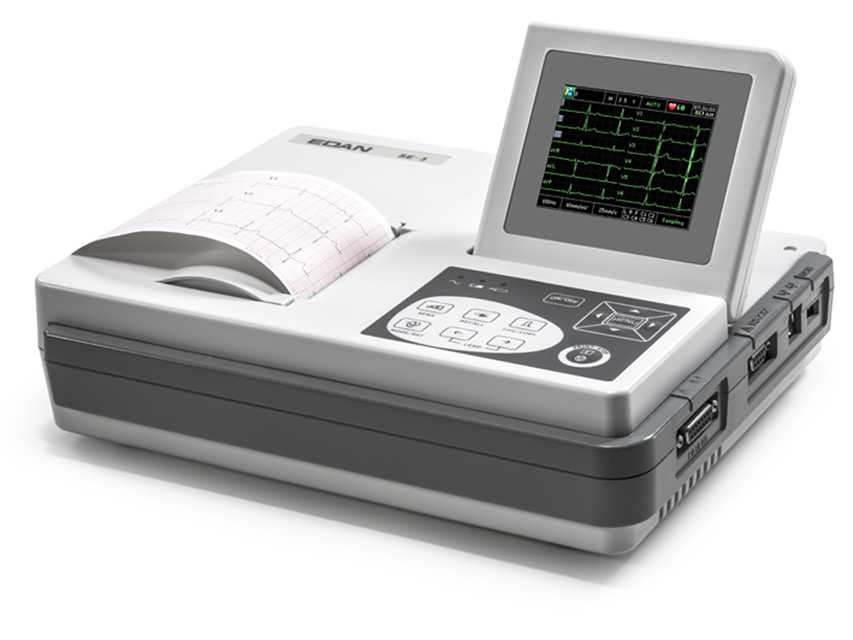

Ecg edan se-3 color – 3 canala cu monitor si interpretare

● Lead: Standard 12 leads
● Acquisition mode: 12 leads simultaneously
● Sensitivity: 2.5, 5, 10, 20, mm/mV
● Input impedance: > 50 MO (10 Hz)

● Filter:
– EMG Filter 25/35/45 Hz off
– DFT Fliter 0.05/0.15/0.25/0.35/0.5/0.67 Hz
– Low pass filter 150/100/75 Hz
– AC Filter on/off

● Recording mode: Auto/Manual/Rhythm/R-R
● Rhythm lead: Any lead selectable
● Safety standard: I EC I/CF

● Power supply:
– AC: 100 V – 115 V / 220 V – 240 V, 50/60 Hz
– Rechargeable Li-ion battery: voltage 14.8 V
– More than 6 hours continuous operation with battery supply

● Data storage: 500 ECG’s
● Thermal paper: rolled 80 mm x 20 m / folded 80 x 70 mm x 200 pages
● Paper speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

● Dimension: 290 x 220 x 85 mm
● Weight: 2.5 kg without battery
● Display: 320 x 240 pixels LCD (colour screen)
● Selectable display language GB, IT, FR, ES, RU, PL, CZ, RO, DE, TR, HR, UA

● Interface: Ethernet, RS232, USB
● Barcode scanner support: yes
● Report formats: PDF, Dicom, SCP, XML
