Monitor gima bm3 pro multiparametri cu ecran tactil
GIMA BM3 PRO touch MONITOR (8? – 800×600 – TFT display)
GIMA monitor is configured with:

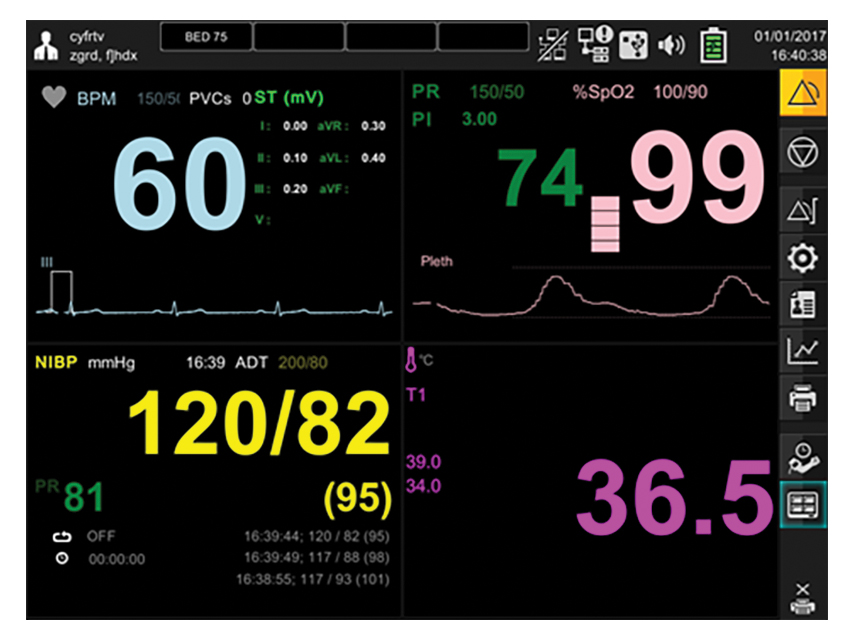

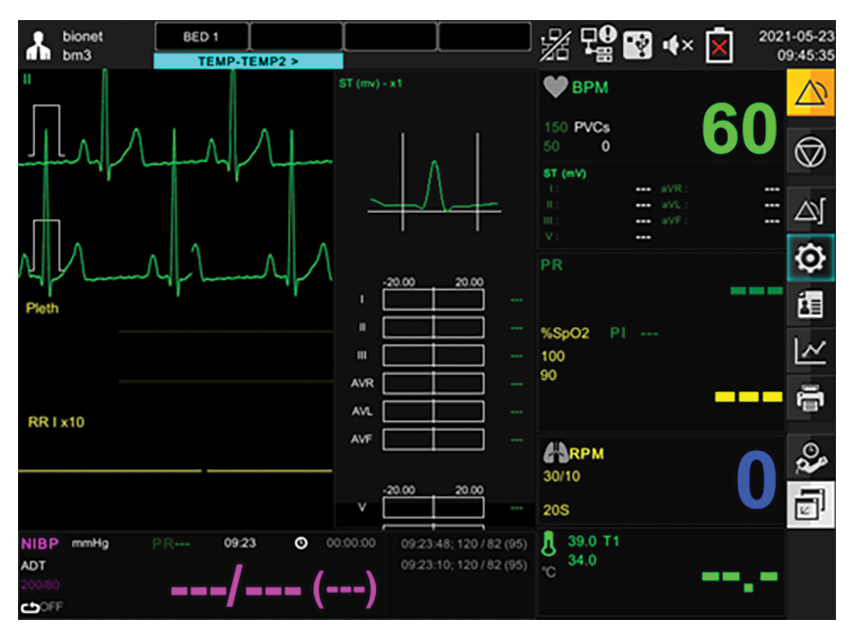

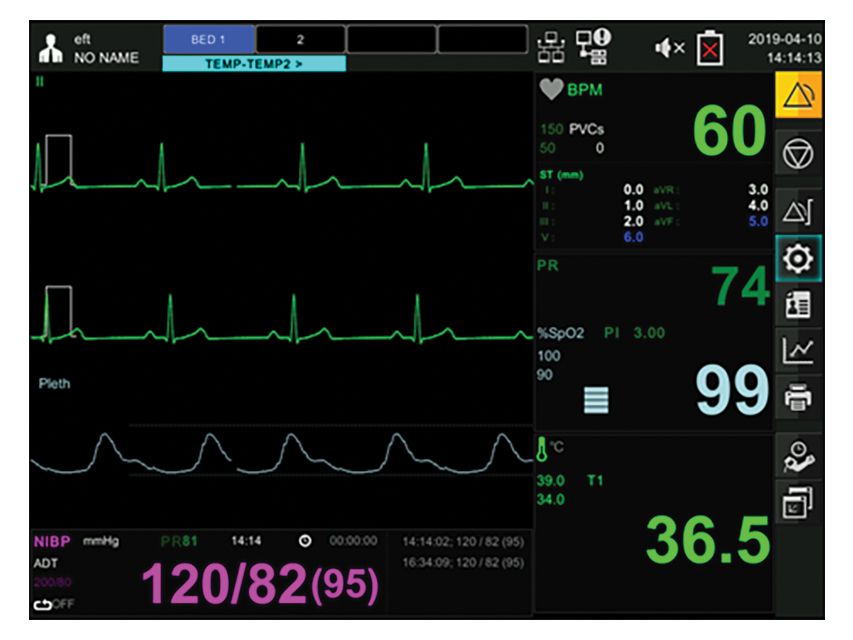

– 8? wide colour touch screen TFT LCD for a clear view
– Individual sweep speed setting for each parameter
– 168 full hours trend data stored
– SpO2 measurement with very low perfusion detection and pulse beep
– 2 traces ECG – screen freeze on/off
– external HDMI output for large screen
– connection to Central monitoring system using LAN or W-LAN
– Li-ion Battery (for 2 hours continuous operation)
– High-performance ECG detection and analysis
● input impedance for dry skin or electrode patch
● ST level, PVC count real-time display
● 13 kinds of Arrhythmia analysis
● pacemaker detection function
– Enhanced & extendible multi-parameter
● Sidestream/Mainstream EtCO2
– Enhanced data management

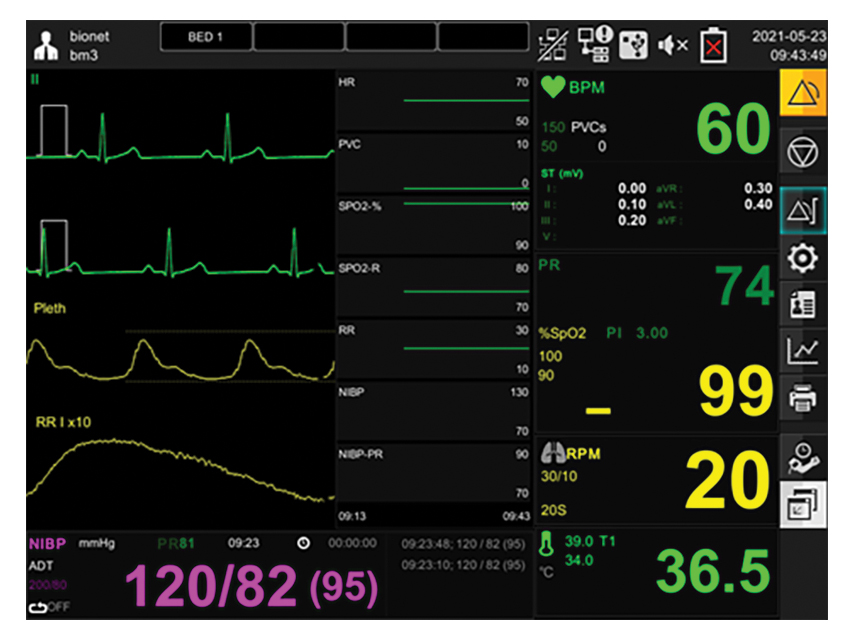

● graphical and tabular trends
● 20 cases per 10 sec alarm waveform stored, reviewed and printed
– USB memory storage
– B2B interconnection
● up to 4 monitors (BM3/5/7) can be connected
– Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN
– User manual: GB, IT (on request: ES, FR, DE).
58 mm built-in printer for both real time and trend data (Speeds: 25-50 mm/sec)
Bed-rail hook
Ergonomic handle
Pacemaker detection indicated on ECG display
Battery status indicator – continuous operating time approx 2 h
Stoc: În depozit Gima Italia
12.985,00 lei
Trace 4 waveforms: 2*ECG, SpO2, Respiration
Sweep speed: 6.25, 12.5, 25, 50 mm/sec
Indicators Categorized alarms (3 priority levels)
Visual alarm, QRS beep & SpO2 Pulse beep
Percent (%) SpO2 pitch tone, Battery status, External power LED
Thermal printer: 25, 50 mm/sec (paper width 58 mm)
Battery: Rechargeable Li-ion battery
Operating time: 2 hours of continuous operation (when fully charged)
Interfaces: lan digital output for transferring data
DC input connector: 18 VDC, 2.8 A max
External HDMI output for large screen
USB barcode reader
USB memory data storage / S/W upgrade
Operating voltage: 100-240 V, 50-60 Hz
Data storage: 168 hours trends, 20 cases of 10 sec alarm waveform
● ECG
Lead type: 3-lead, 5-lead (option)
Lead selection:
3-lead I, II, III
5-lead I, II, III, aVR, aVL, aVF, V (option)
Heart rate range: Adult: 30 to 300 bpm,
Neonate/Pediatric: 30 to 350 bpm
Heart rate accuracy: ? 1bpm or ? 1%, whichever is greater
Sweep speed: 6.25, 12.5, 25, 50 mm/sec
Filter: Diagnosis: 0.05 to 150 Hz Moderate: 0.5 to 25 Hz
Monitoring: 0.5 to 40 Hz Maximum: 5 to 25 Hz
Pacemaker detection mode: Indicator on waveform display (user selectable)
Protection: Against electrosurgical interference and defibrillation
● SpO2 %
Saturation Range: 0% to 100% ? 2 digits (70% to 100%)
Pulse rate range: 30 to 254 bpm ? 2 bpm
● NIBP
Technique: Oscillometric
Measurement Modes: Manual/automatic/continuous
Pressure range: 0 to 300 mmHg ?3 mmHg
Measurement range: Adult pressure: 20 to 260 mmHg
Pediatric pressure: 20 to 160 mmHg
Neonatal pressure: 20 to 130 mmHg
● Respirations
Method: Thoracic impedance
Range: 5 to 120 breath/min
Accuracy: ? 1 breath/min
Apnea alarm: yes
● Temperature Unit – optional
Range: 0 ° to 50 °C (32 °F to 122 °F)
Accuracy: ? 0.1 °C (25 °C to 50 °C), ? 0.2 °C (0 °C to 24 °C)
Compatible with: YSI Series 400 Temperature Probes
